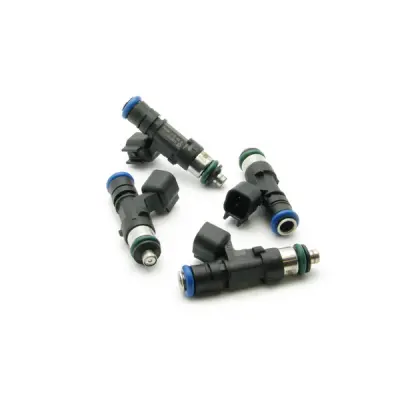

DeatschWerks 650cc Injectors R53 R52 (Set of 4) (17U-01-0650-4)

SKU:

17U-01-0650-4

Description

Please note that we are currently waiting on more stock - approx 4-5 weeks.

Set of 4 650cc injectors

All DeatschWerks injectors feature the following:

E85 compatibility
Flow rates and set balancing in-house by DeatschWerks
Flow balanced to within 1-2% (flow report included)
Excellent spray pattern and atomization for optimized idle and tuning
Technical assistance and tuning data available via phone or email
3-year comprehensive warranty

The following information has been provided by DW.

Matched set of 4 injectors 650cc/min

Fuel Pressure Range	40-80 psi
Minimum Pulse Width	1.0 ms
Maximum Duty Cycle	93%
Coil Impedance	12.4 ohm
Injector Type	Bosch EV14 (standard)
Connector Type	us-car

Nominal Static Flow Rate

PSI >	43	58	70	80	90	100
cc/min	649	757	827	873	935	978
lb/hr	61.8	72.1	78.8	83.1	89.0	93.1

Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.

Offset In Milliseconds (Pressure Vs Voltage)

PSI > VOLTS v	43	58	70	80	90	100
8	2.02	2.34	2.57	2.72	2.91	3.06
9	1.68	1.-5	2.15	2.28	2.44	2.57
10	1.37	1.60	1.78	1.89	2.02	2.13
11	1.10	1.29	1.45	1.55	1.66	1.76
12	0.87	1.04	1.18	1.26	1.36	1.45
13	0.67	0.83	0.95	1.02	1.12	1.19
14	0.51	0.67	0.77	0.84	0.93	1.00
15	0.39	0.56	0.64	0.70	0.79	0.86
16	0.31	0.45	0.55	0.61	0.70	0.76
